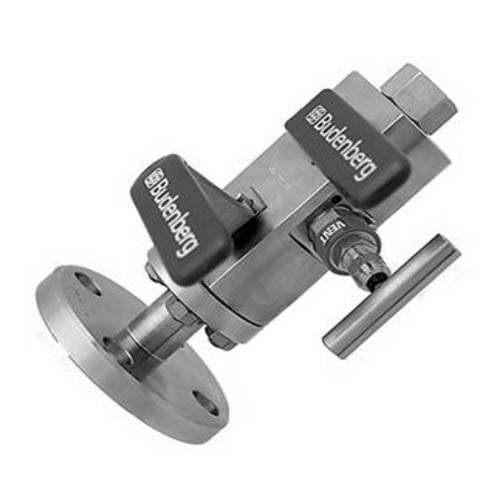

The model MVS is a three piece modular valve that can be readily configured into a full range of Single or Double Block and Bleed Valves that provide primary isolation when directly mounted onto process pipework or vessels. The MVS provides an industry standard flanged inlet connection and a screwed vent and outlet connection to suit any instrumentation or take off requirement.
The central body of the MVS is available in any combination of Ball, Heavy Duty Needle or OSandY Isolation to which industry standard flanged, hub and screwed end connections are bolted. The design of the end connections incorporate the detail that directly secures the Ball Assembly in position thereby ensuring a single piece of material up to and including the first Primary Isolation Valve.
The modularity of the MVS therefore provides a cost effective yet limitless choice of configurations and materials that make it the perfect choice for your primary isolation requirements. All units can be supplied with a full range of testing, certification and documentation to meet any project requirement
